Creating Themes

Themes are plugins that modify the style table. The style table contains style definitions of most UI elements with Pragtical, including syntax highlighting. It can be modified by the user module, a plugin, or a theme file. As Pragtical uses immediate-mode rendering, most UI elements will be updated once the table were modified.

Example: Dracula Theme

This is an example of how a theme file could look like. This Dracula theme is taken from the colors repository.

-- import the style table, and the common module
-- which provides hex / rgb() -> color conversion functions
local style = require "core.style"
local common = require "core.common"

-- set user interface colors
style.background = { common.color "#282a36" }
style.background2 = { common.color "#21222b" }
style.background3 = { common.color "#21222b" }
style.text = { common.color "#7b81a6" }
style.caret = { common.color "#f8f8f0" }
style.accent = { common.color "#8be9fd" }
style.dim = { common.color "#4f5873" }
style.divider = { common.color "#1f2029" }
style.selection = { common.color "#44475a" }
style.line_number = { common.color "#53576e" }
style.line_number2 = { common.color "#f8f8f0" }
style.line_highlight = { common.color "#313442" }
style.scrollbar = { common.color "#44475a" }
style.scrollbar2 = { common.color "#ff79c6" }
style.search_selection = { common.color "#16171d" }
style.search_selection_text = { common.color "#e1f50a" }

-- set the diff viewer colors
style.diff_delete = { common.color "rgba(200, 84, 84, 1)" }
style.diff_insert = { common.color "rgba(77, 127, 73, 1)" }
style.diff_modify = { common.color "rgba(202, 173, 85, 1)" }
style.diff_delete_background = { common.color "rgba(200, 84, 84, 0.30)" }
style.diff_insert_background = { common.color "rgba(77, 127, 73, 0.30)" }
style.diff_modify_background = { common.color "rgba(202, 173, 85, 0.30)" }
style.diff_delete_inline = { common.color "rgba(200, 84, 84, 0.40)" }
style.diff_insert_inline = { common.color "rgba(77, 127, 73, 0.40)" }

-- set syntax highlighting colors
style.syntax["normal"] = { common.color "#f8f8f2" }
style.syntax["symbol"] = { common.color "#f8f8f2" }
style.syntax["comment"] = { common.color "#6272a4" }
style.syntax["keyword"] = { common.color "#ff79c6" }
style.syntax["keyword2"] = { common.color "#ff79c6" }
style.syntax["number"] = { common.color "#bd93f9" }
style.syntax["literal"] = { common.color "#f1fa8c" }
style.syntax["string"] = { common.color "#f1fa8c" }
style.syntax["operator"] = { common.color "#ff79c6" }
style.syntax["function"] = { common.color "#50fa7b" }

When placed into $USERDIR/colors/dracula.lua, the theme can be loaded by using core.reload_module "colors.dracula" or via the Settings GUI plugin. The theme file is executed as a normal Lua module when applied.

Look-and-Feel

The following sections describe a list of keys in the style table that can be used to customize Pragtical. Plugins may choose to use any of the styles defined in the table for their own purposes, and there are no guidelines for the purpose of all styles defined here. Some plugins may use non-standard names within the style table, so you should consult documentation for those plugins if you wish to modify their style.

Fonts

The following entries define the fonts that are used in Pragtical. Pragtical uses icon fonts to render icons and images in the user interface, and the icon set can be overridden by specifying an icon font that has the correct mapping.

Name	Description
style.font	The font used by non-code UI elements.
style.big_font	Larger version of style.font.
style.code_font	The font used for display code.
style.icon_font	The font containing icons that are displayed in the UI.
style.icon_big_font	Larger version of style.icon_font.

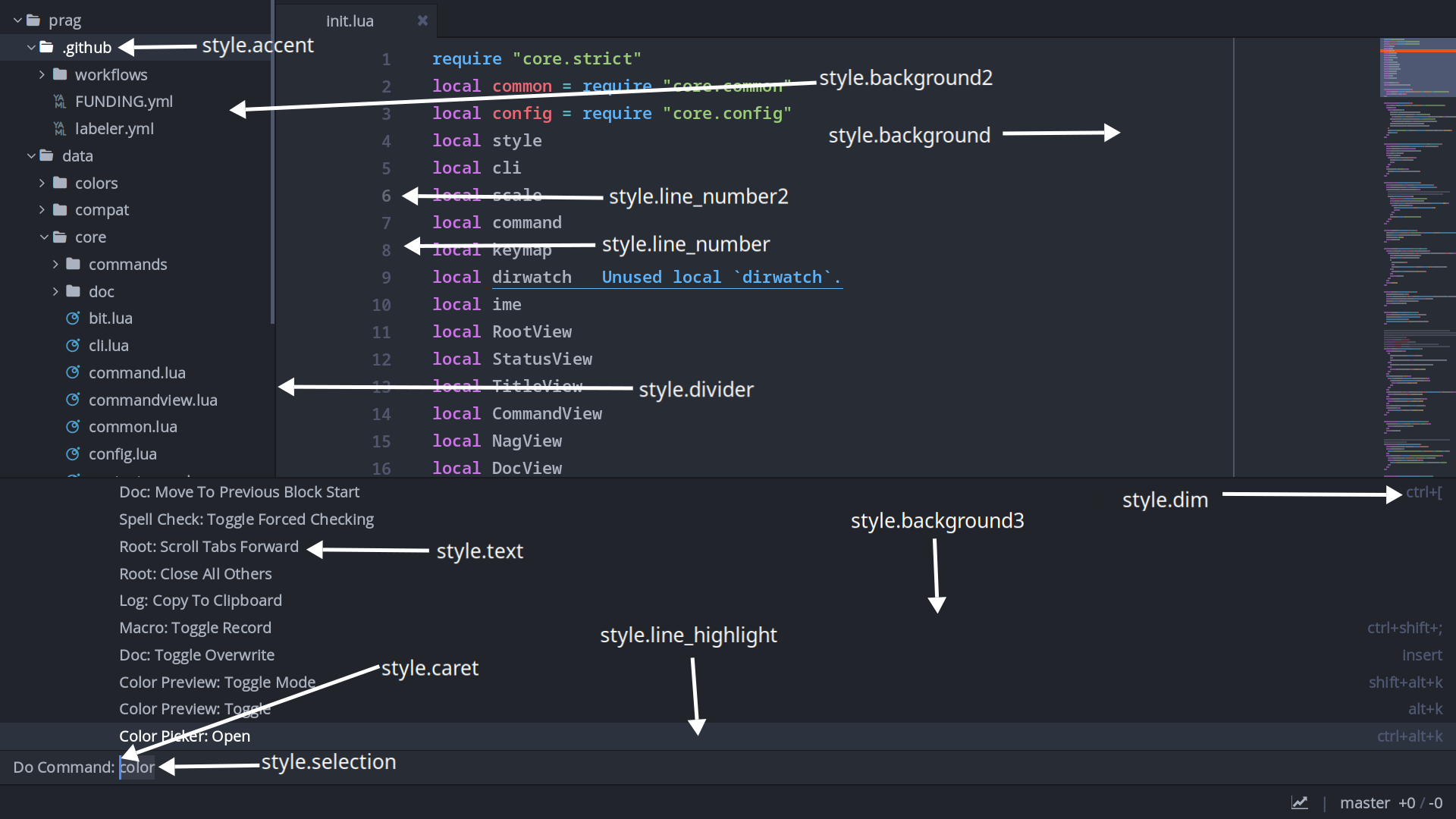

Base Colors

These colors make up the majority of Pragtical's user interface.

Name	Description
style.background	The background color of the editor (DocView).
style.background2	The background color of the file browser (TreeView)
style.background3	The background color of the command palette (CommandView)
style.text	The default text color.
style.accent	The color for primary (highlighted) text.
style.dim	The color for secondary (dimmed) text.
style.divider	The color for dividers between views.
style.selection	The background color of selected text.
style.line_number	The color of the line numbers.
style.line_number2	The line number color of the current line (where the caret resides).
style.line_highlight	The background color of the current line (where the caret resides).
style.search_selection	The background color of a matching search result.
style.search_selection_text	The foreground color of a matching search result.

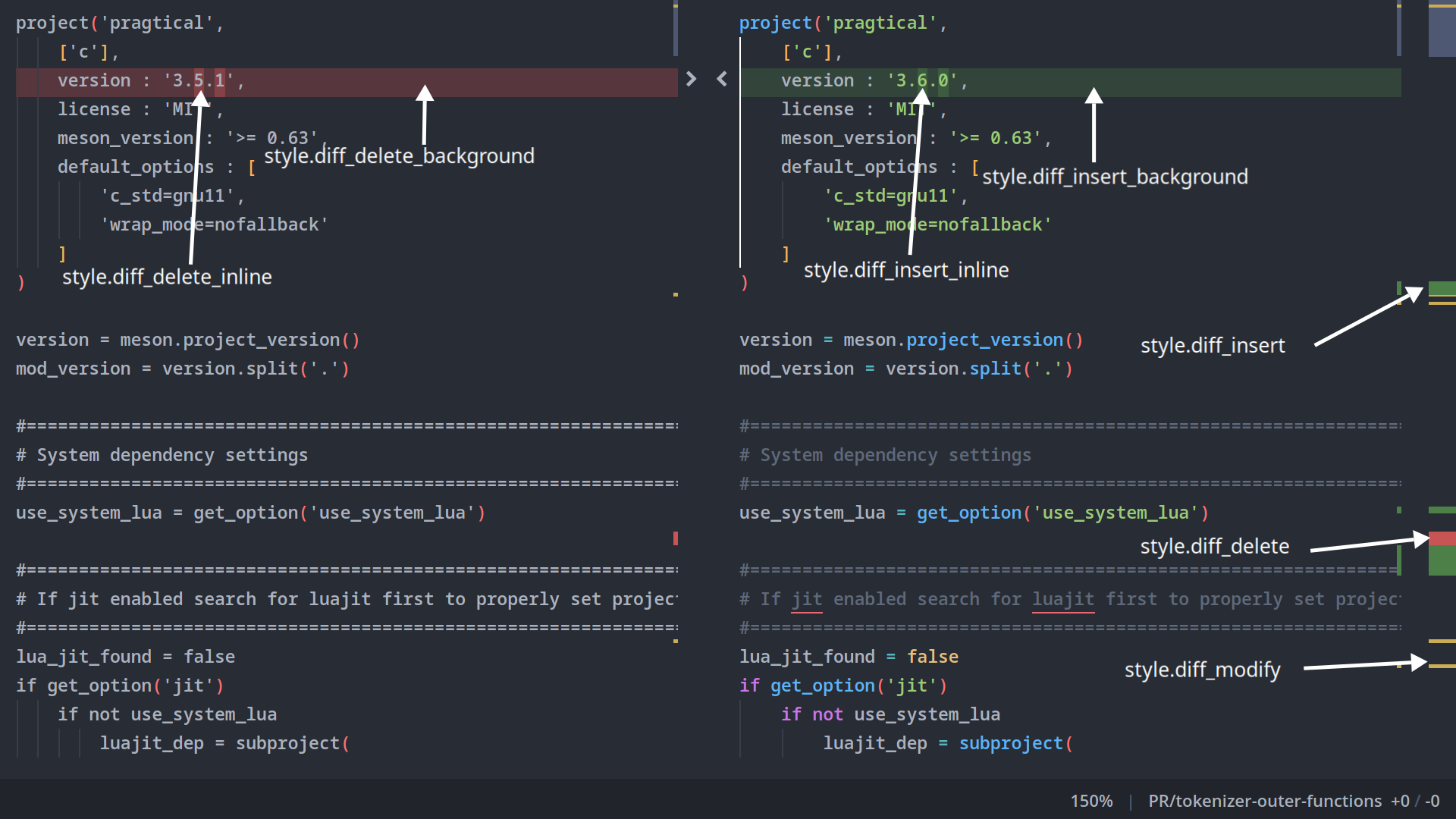

Diff Colors

The colors used by the built-in diff viewer.

Name	Description
style.diff_delete	The fully opaque color for deletes.
style.diff_insert	The fully opaque color for inserts.
style.diff_modify	The fully opaque color for modifications.
style.diff_delete_background	Usually a semi-transparent color used on deleted lines.
style.diff_insert_background	Usually a semi-transparent color used on inserted lines.
style.diff_modify_background	Usually a semi-transparent color used on modified lines.
style.diff_delete_inline	Indicates deletions on a modified line.
style.diff_insert_inline	Indicates insertions on a modified line.

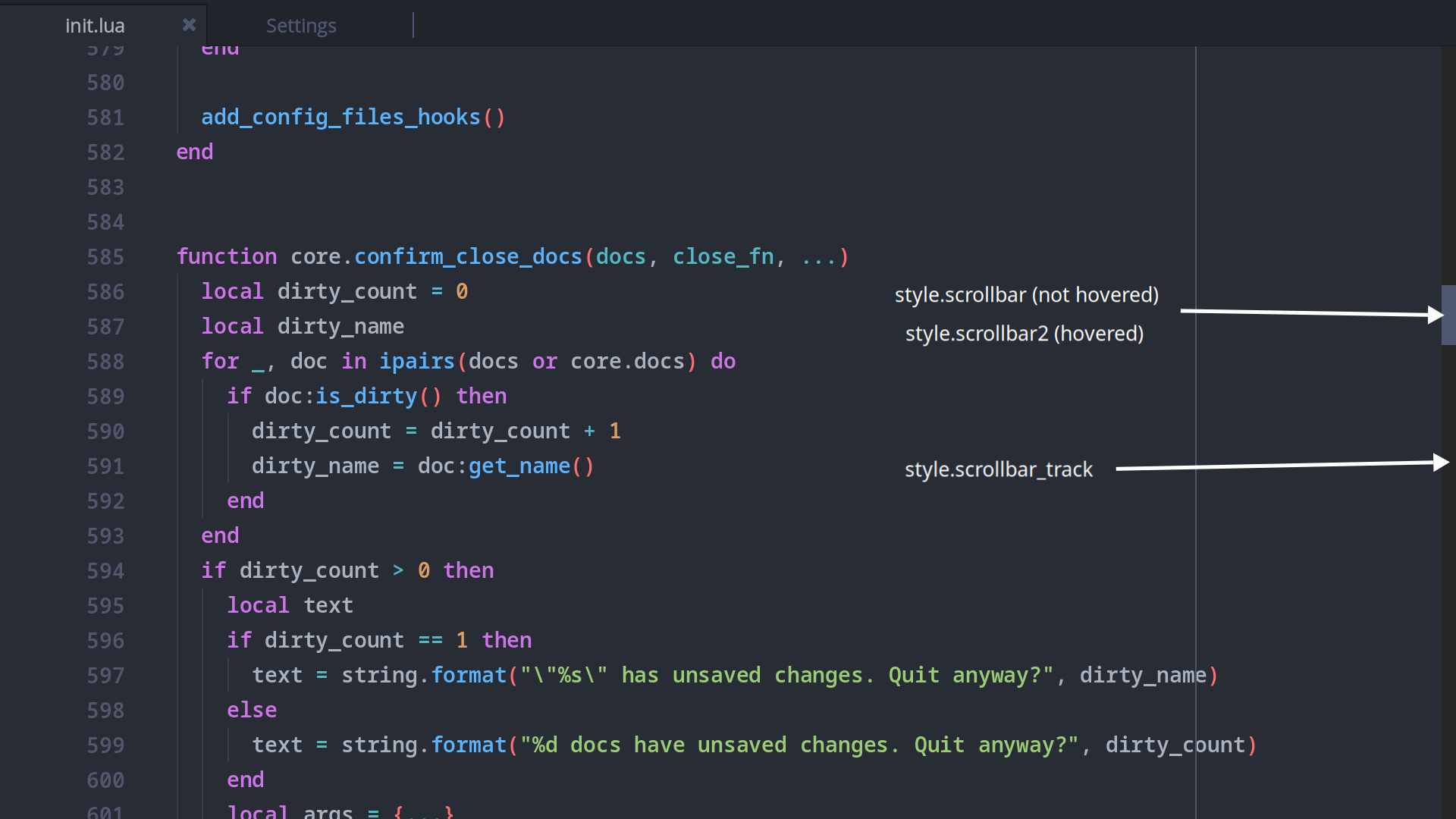

Scrollbar

These colors makes up the scrollbar in Pragtical.

Name	Description
style.scrollbar	The color of the scrollbar handle.
style.scrollbar2	The color of the scrollbar handle when hovered.
style.scrollbar_track	The background color of the scrollbar track.

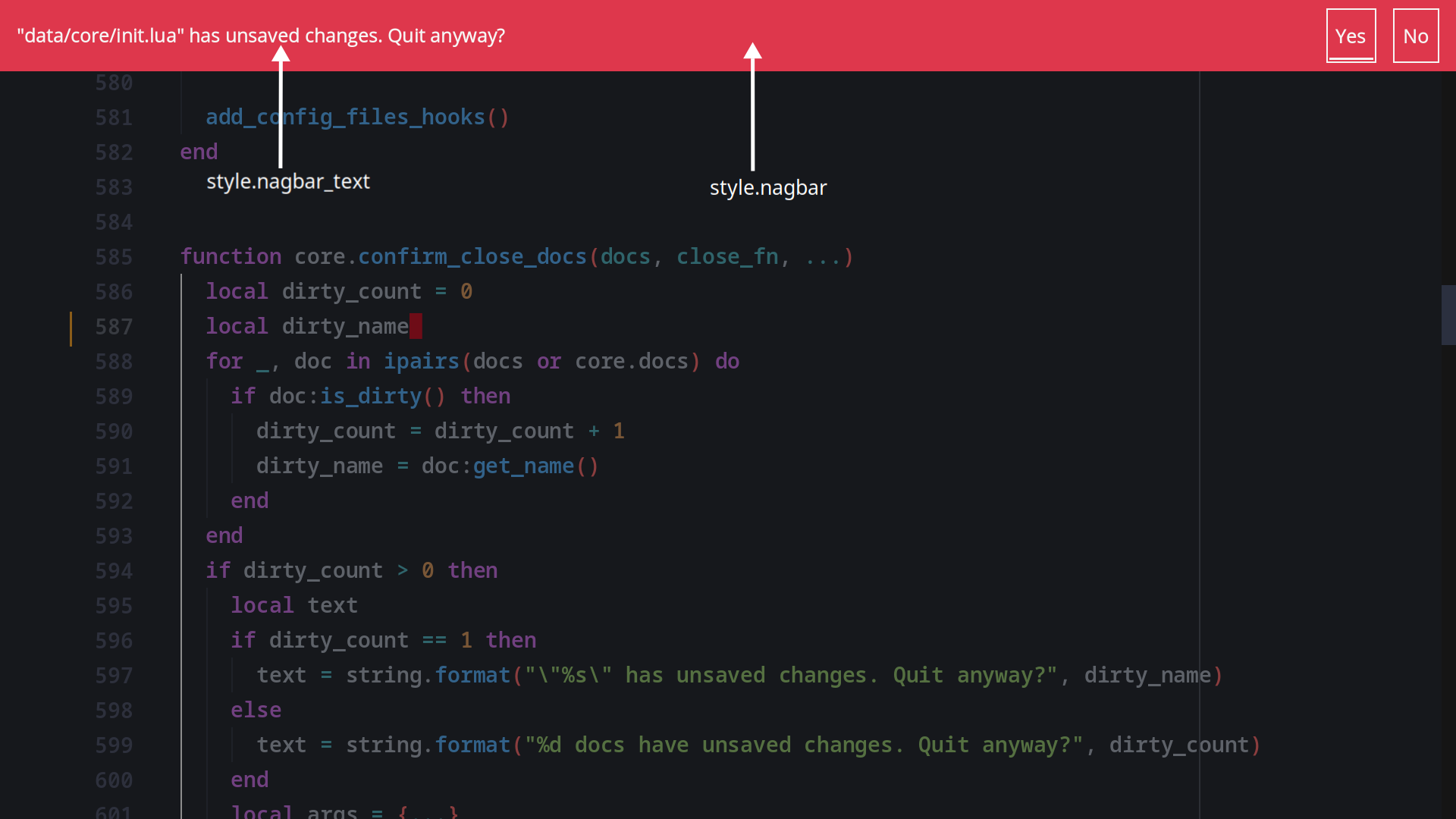

Nagbar

The Nagbar is a dialog interfaced used in Pragtical to convey important choices, such as saving or discarding files when exiting. These colors control the appearance of the Nagbar.

Name	Description
style.nagbar	The background color of the Nagbar.
style.nagbar_text	The foreground (text and button) color of the Nagbar.
style.nagbar_dim	The overlay color used to dim other parts of the editor when the Nagbar is present.

Miscellaneous

These colors do not belong to any particular category, but is still used in the editor.

Name	Description
style.drag_overlay	The overlay color covering other parts of the editor when a tab is dragged.
style.drag_overlay_tab	The overlay color covering the tab when a tab is dragged.
style.good	The color used to indicate a successful operation.
style.warn	The color used to display warning.
style.error	The color used to indicate an error.
style.modified	The color used to indicate a modification has been done.
style.log["INFO"]	The color and icon used for displaying INFO entries in the logs.
style.log["WARN"]	The color and icon used for displaying WARN entries in the logs.
style.log["ERROR"]	The color and icon used for displaying ERROR entries in the logs.

For the style.log tables, each entry is expected to be a table in the form of { icon = string, color = color }, where the icon is rendered from style.icon_font, and the color is applied to the rendered icon.

Syntax Highlighting

Pragtical defines colors for the tokens produced by Tokenizer, which is used to implement syntax highlighting. These tokens are dependent on the syntax files for the particular language, and are intentionally loosely defined.

Name	Description
style.syntax["normal"]	Used for highlighting normal (plain) text.
style.syntax["symbol"]	Used for highlighting variables.
style.syntax["comment"]	Used for highlighting comments.
style.syntax["keyword"]	Used for highlighting keywords (e.g. local, function, end, if).
style.syntax["keyword2"]	Used for highlighting a different set of keywords (e.g. self, int).
style.syntax["number"]	Used for highlighting numbers.
style.syntax["literal"]	Used for highlighting literals (e.g. true, false, nil).
style.syntax["string"]	Used for highlighting strings.
style.syntax["operator"]	Used for highlighting operators (e.g. +, -, /, *).
style.syntax["function"]	Used for highlighting functions.

Additional Highlighting Tokens

Pragtical extends the available syntax tokens to allow for more fine grained coloring of a language. This tokens aren't part of original Lite so most syntax files do no include them. By default they are assigned darker or lighter colors from the previous tokens but you can incorporate them into your syntax for more flexibility and customization.

Name	Description
style.syntax["annotation"]	Used for doc comments.
style.syntax["annotation.string"]	Used for doc comments strings.
style.syntax["annotation.param"]	Used for doc comments params.
style.syntax["annotation.type"]	Used for doc comments types.
style.syntax["annotation.operator"]	Used for doc comments operators.
style.syntax["annotation.function"]	Used for doc comments functions.
style.syntax["annotation.number"]	Used for doc comments numbers.
style.syntax["annotation.keyword2"]	Used for doc comments keywords.
style.syntax["annotation.literal"]	Used for doc comments literals.
style.syntax["boolean"]	Used for keywords like: true or false.
style.syntax["character"]	Used for single quote sequences like: 'a'.
style.syntax["character.special"]	Used for escape sequences like: \t, \r, \n.
style.syntax["conditional"]	Used for keywords like: if, else, elseif.
style.syntax["conditional.ternary"]	Used for conditional ternary as: condition ? value1 : value2.
style.syntax["constant"]	Used for keywords like: nil, null.
style.syntax["constant.builtin"]	Used for built-in constants.
style.syntax["constant.macro"]	Used for macro constants (e.g. #define MYVAL 1).
style.syntax["constructor"]	Used for constructor declarations (e.g. __init, myclass::myclass()).
style.syntax["debug"]	Used for debugging aids (styled as comments).
style.syntax["define"]	Used for #define and similar macros.
style.syntax["error"]	Used for error keywords or error reporting.
style.syntax["exception"]	Used for keywords like: try, catch, finally.
style.syntax["field"]	Used for fields of classes or tables.
style.syntax["float"]	Used for floating-point numbers.
style.syntax["function.call"]	Used for function calls.
style.syntax["function.macro"]	Used for macro-style function calls (e.g. #define myfunc()).
style.syntax["include"]	Used for include, import, or require.
style.syntax["keyword.return"]	Used for return statements.
style.syntax["keyword.function"]	Used for function declaration keywords.
style.syntax["keyword.operator"]	Used for logic operators like and, or.
style.syntax["label"]	Used for labels (e.g. label:, ::label::).
style.syntax["method"]	Used for class method declarations.
style.syntax["method.call"]	Used for method calls.
style.syntax["namespace"]	Used for namespace names.
style.syntax["parameter"]	Used for function parameters.
style.syntax["preproc"]	Used for preprocessor keywords like #if, #endif.
style.syntax["punctuation"]	Used for general punctuation.
style.syntax["punctuation.brackets"]	Used for brackets: (), {}, [].
style.syntax["punctuation.delimiter"]	Used for delimiters like ,, :.
style.syntax["punctuation.special"]	Used for special characters like #, @.
style.syntax["repeat"]	Used for loops like while, for.
style.syntax["storageclass"]	Used for keywords like static, const, constexpr.
style.syntax["storageclass.lifetime"]	Used for lifetime specifiers (e.g. auto, register).
style.syntax["tag"]	Used for tags in HTML, JSX, etc.
style.syntax["tag.delimiter"]	Used for tag delimiters like < and >.
style.syntax["tag.attribute"]	Used for attributes inside tags (e.g. id="value").
style.syntax["text.diff.add"]	Used to highlight added lines in diffs.
style.syntax["text.diff.delete"]	Used to highlight deleted lines in diffs.
style.syntax["type"]	Used for standard library types.
style.syntax["type.builtin"]	Used for built-in types like int, char.
style.syntax["type.definition"]	Used for custom type definitions (e.g. typedef).
style.syntax["type.qualifier"]	Used for access modifiers like private, public.
style.syntax["variable"]	Used for user-defined variables.
style.syntax["variable.builtin"]	Used for built-in variables like this, self, parent.

Size & Dimensions

The following entries define various sizes and dimensions used in Pragtical's user interface. It's not recommended changing these values unless you know what you're doing.

Name	Description
style.divider_size	The size of the divider between views.
style.scrollbar_size	The size of the scrollbar (contracted).
style.scrollbar_size_expanded	The size of the scrollbar (expanded).
style.minimum_thumb_size	The minimum size of the scrollbar handle.
style.contracted_scrollbar_margin	The margin between the cursor and the contracted scrollbar to expand it.
style.expanded_scrollbar_margin	The margin between the cursor and the expanded scrollbar to contract it.
style.caret_width	The width of the caret.
style.tab_width	The width of each editor tab.
style.padding.x	The horizontal padding.
style.padding.y	The vertical padding.
style.margin.tab.top	The top margin of editor tabs.
